How to Build Your Own Uninterruptible Power Supply: 13 Steps

Before You Start: Choose the Right Kind of DIY UPS

A UPS passes normal power to a load, keeps a battery charged, and transfers the load to stored energy when utility power fails. For a home-built project, two approaches make practical sense:

• Low-voltage DC UPS: Best for routers, modems, security hubs, mini PCs, LED lighting, and other equipment that already uses 5-, 9-, 12-, or 24-volt DC power.
• Modular AC UPS: Best for computers and other 120-volt devices. Use a listed inverter/charger or UPS power module with enclosed AC connections and manufacturer-approved battery wiring.

Do not create a homemade wall outlet, splice extension cords, backfeed a receptacle, or hardwire the UPS into a building panel. Fixed transfer equipment and branch-circuit work belong to a licensed electrician. Keep the DIY portion on the extra-low-voltage battery side and use factory cords and connectors for AC power.

Tools and Components

A typical modular build needs a plug-in power meter, multimeter, insulated tools, eye protection, a listed battery pack, a matched charger, an enclosed DC-UPS controller or pure sine wave inverter/charger, battery-side protection, a disconnect, manufacturer-rated cables, insulated terminals, strain reliefs, labels, and a suitable ventilated enclosure.

Use one battery chemistry throughout the system. Never mix old and new batteries, different capacities, or different chemistries in the same bank. For lithium systems, buy an assembled pack with an integrated battery management system rather than building a pack from loose cells.

How to Build Your Own Uninterruptible Power Supply in 13 Steps

Step 1: Define the Critical Load

Start with the devices that truly need backup power. A router and modem may remain online for hours with a modest battery. A gaming computer, laser printer, space heater, or refrigerator can turn the same project into a high-current engineering problem with a dramatic price tag.

List each device, its normal draw, startup behavior, and required voltage. Exclude heating appliances, large motor loads, medical equipment, life-safety systems, and anything not approved for inverter power. A DIY UPS should protect convenience and data, not serve as improvised life support.

Step 2: Measure Actual Wattage

Connect AC equipment through a listed plug-in watt meter and observe idle, typical, and peak draw. For low-voltage equipment, use the adapter’s output rating as a conservative ceiling unless you can measure DC current safely.

Suppose a modem uses 8 watts, a router uses 12 watts, and a small network-attached storage device averages 30 watts. The normal load is about 50 watts. Add at least 20 to 30 percent headroom for startup peaks, future accessories, conversion losses, and measurement uncertainty. Designing around 65 watts is more sensible than pretending every electron will behave perfectly.

Step 3: Decide Between DC and AC Output

If every device accepts compatible low-voltage DC, choose a DC UPS. Avoiding conversion to 120-volt AC and back can reduce losses and heat. Confirm connector size, polarity, regulated voltage, and maximum current.

Choose AC output for standard wall-powered loads or mixed DC voltages. For computers with active power-factor-correction supplies, use a pure sine wave inverter. Select a complete, enclosed module rated for the battery voltage and continuous load.

Step 4: Set a Realistic Runtime Goal

Decide whether the UPS must bridge a brief flicker, allow an orderly shutdown, or run networking equipment for hours. Longer runtime means a larger battery, more space, and longer recharge time.

Estimate required energy with this planning formula:

Required battery watt-hours = load watts × runtime hours ÷ inverter efficiency ÷ usable battery fraction

For a 50-watt network load running for two hours, the equipment needs 100 watt-hours. Assuming 85 percent end-to-end efficiency and using 80 percent of rated battery capacity, the estimate becomes 100 ÷ 0.85 ÷ 0.80, or about 147 watt-hours.

A 12.8-volt, 20-amp-hour battery stores roughly 256 watt-hours nominally, providing comfortable margin for aging, temperature changes, and optimistic labels.

Step 5: Choose the Battery Chemistry and Voltage

Sealed lead-acid batteries are affordable and handle surge current, but they are heavy, dislike deep discharge, age faster in heat, and may require ventilation.

LiFePO4 offers lower weight and more usable capacity, but it requires an integrated battery management system and an approved charger. Buy a listed stationary-use pack; do not substitute loose cells, salvaged laptop batteries, or undocumented mystery packs.

Higher-power systems often benefit from 24 volts because the same wattage requires about half the current of a 12-volt system. Never change the module’s required voltage or combine batteries unless the manufacturer permits it.

Step 6: Select a Matched Charger and Power Module

The charger must match battery chemistry, voltage, charge profile, and current. The power module should support the same voltage and include low-voltage cutoff, overload, short-circuit, and thermal protection.

For AC systems, check both watts and volt-amperes; neither rating may be exceeded. Choose a continuous watt rating comfortably above the measured peak and confirm that the surge rating covers approved startup loads. Operating near the limit creates heat and eliminates useful headroom.

Step 7: Draw a Block Diagram

Before touching a cable, sketch the system as functional blocks:

Utility power → listed charger or UPS module → protected load
Battery positive → fuse or DC breaker → disconnect → UPS module
Battery negative → UPS module return

Mark voltage, polarity, connectors, current limits, and component ratings. Separate AC and battery wiring, and follow the equipment manual whenever it differs. Paper mistakes are cheaper than smoky ones.

Step 8: Choose the Fuse, Disconnect, Cables, and Enclosure

A battery can release dangerous short-circuit current. Install manufacturer-specified overcurrent protection close to the positive terminal. It must be rated for DC at the system voltage and available fault current; a fuse that merely fits is not automatically suitable.

Use approved cable assemblies, keep them short, protect edges, add strain relief, and cover terminals. Mount everything in a stable enclosure with required airflownever a sealed box, carpeted corner, flammable storage area, or direct sun.

Step 9: Mount Everything With Power Disconnected

Unplug utility power, open the battery disconnect, and verify de-energization. Secure the battery against movement, preserve airflow, and install terminal covers, cable clamps, and labels before connection.

Keep tools and jewelry away from terminals; even low voltage can produce destructive current. Stop if a component is cracked, swollen, corroded, wet, unusually hot, or odorous.

Step 10: Connect the Low-Voltage Battery Circuit

Follow both manuals exactly. With the disconnect open and fuse removed, connect positive and negative using the specified connectors and torque. Verify polarity with a multimeter before installing the fuse or closing the disconnect.

Do not guess torque, over-stack lugs, or leave stray strands. Reversed polarity can destroy electronics instantly; a loose connection may overheat slowly, like a villain who prefers suspense.

Step 11: Connect the Load Without Modifying Mains Wiring

For DC output, verify no-load voltage and polarity, then add devices one at a time with rated, keyed connectors. For AC output, use only factory receptacles and cords and follow the manufacturer’s grounding instructions.

Never connect inverter output to a wall receptacle, generator inlet, power strip receiving another source, or homemade transfer cable. Never use a cord with two male plugs. Permanent household backup requires listed transfer equipment installed by a licensed electrician.

Step 12: Perform a Controlled Transfer and Runtime Test

Power the system with no load, confirm charging and stable output, then add devices one at a time while watching load, voltage, temperature, noise, and alarms. Fully charge the battery before an outage test.

Save all computer work, then simulate an outage by unplugging the UPS input cord. Do not open panels or touch live conductors. Confirm that the equipment remains operating, battery mode activates, and no cable or connector becomes unusually warm. Restore utility power and verify that charging resumes.

Test runtime when shutdown is harmless. Do not deliberately drain the pack to zero; rely on its approved cutoff. Record load, runtime, starting and ending voltage, and ambient temperature.

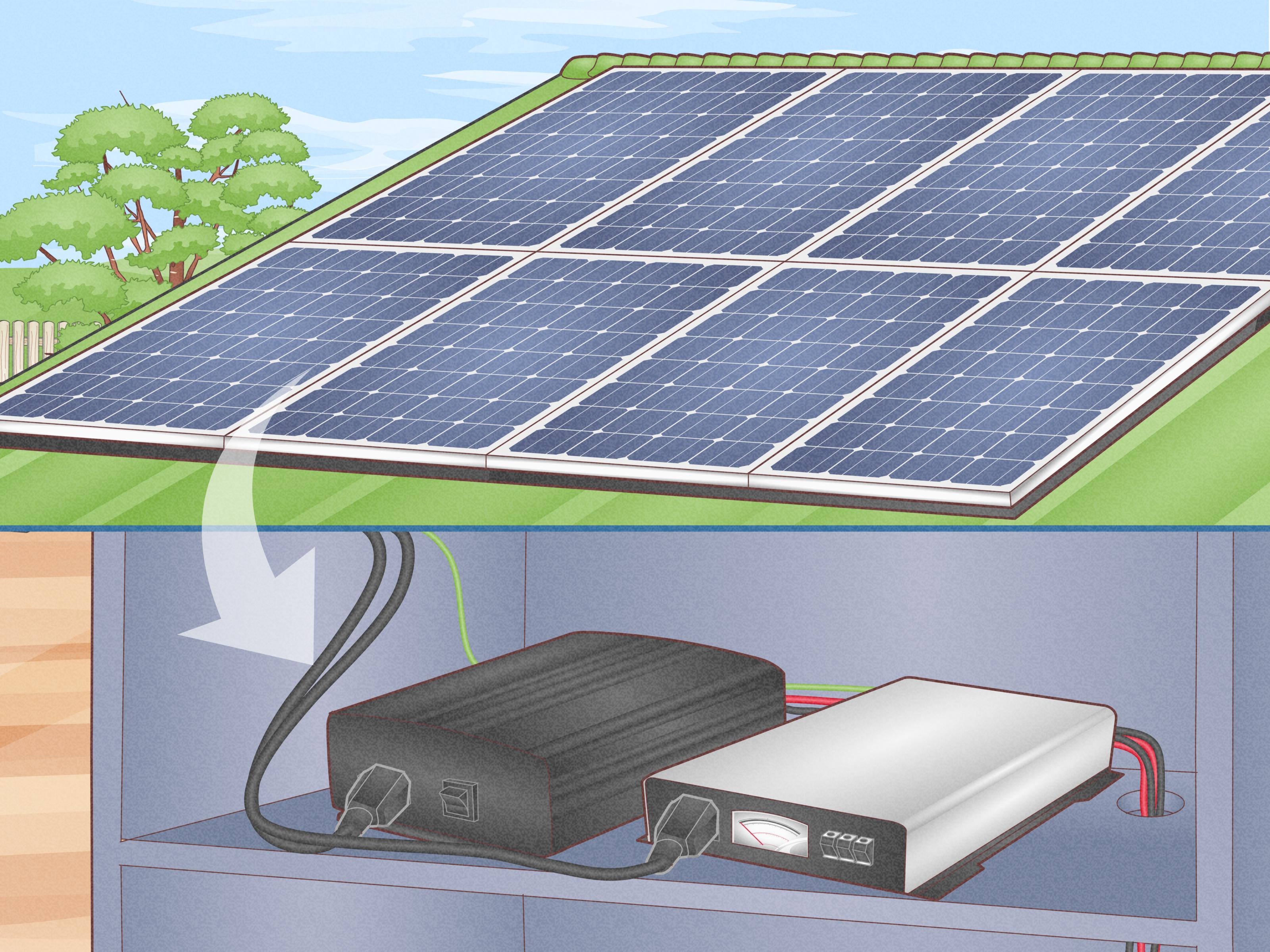

Step 13: Label, Document, and Maintain the UPS

Label chemistry, voltage, fuse rating, installation date, shutdown procedure, and approved loads. Store the manuals, diagram, test results, and replacement part numbers nearby. Future-you, holding a flashlight, will approve.

Inspect for swelling, corrosion, dust, blocked vents, loose hardware, unusual heat, and falling runtime. Test transfer periodically and runtime at least annually or as directed. Replace aging batteries and recycle them through an approved retailer, hazardous-waste program, or qualified recyclernever household trash.

Common DIY UPS Mistakes to Avoid

• Sizing by VA alone: The watt rating is just as important and is often the binding limit.
• Ignoring conversion losses: Battery watt-hours do not equal delivered AC watt-hours.
• Using the wrong charger: Lead-acid and lithium packs require different charging behavior.
• Skipping battery-side protection: A downstream inverter fuse may not protect the battery cable.
• Using an unsuitable waveform: Some power supplies may buzz, overheat, or shut down on modified sine wave power.
• Installing everything in a sealed box: Chargers, inverters, and batteries produce heat.
• Testing with unsaved work: Confidence is admirable; backups are better.

Real-World Build Experience: What the First Version Teaches You

The first lesson is that the load list matters more than the parts list. A beginner may imagine one heroic box powering an office, entertainment center, aquarium, and perhaps a small moon base. Measurement restores humility: a desktop can draw far more under load, while a laser printer may produce a surge that a modest inverter dislikes intensely.

A more successful first project is usually a network UPS. Consider a cable modem, Wi-Fi router, and small Ethernet switch drawing a combined 32 watts. With a 12.8-volt, 20-amp-hour LiFePO4 battery, a compatible DC-UPS controller, and regulated outputs, the system may have enough nominal energy for several hours after accounting for losses and a conservative reserve. Exact runtime must be measured because converters, battery temperature, cable resistance, and the controller’s cutoff all affect the result.

Bench testing makes small details important. Similar DC barrel plugs may have different dimensions, and two “12 V” devices may have very different tolerances. Tiny polarity symbols become surprisingly philosophical in dim light. Labeling every cable prevents a remarkable amount of muttering.

Heat is another reality check. A system cool at 20 watts may become warm at 100. That proves why airflow, cable ratings, and headroom matter. During tests, inspect terminals and connectors; unusual heat, discoloration, odor, or deformation requires immediate shutdown.

The transfer test reveals whether the protected equipment truly accepts the UPS output. Routers generally continue without drama when a properly designed DC UPS transfers seamlessly. A desktop computer can be more demanding. If it reboots, possible causes include an overloaded inverter, incompatible waveform, excessive transfer time, weak battery voltage, or a poor connection.

The solution is not to repeat the failure until something emits smoke. Reduce the load, inspect the documentation, and verify every rating.

Runtime estimates are planning numbers, not prophecy. A calculation may predict 180 minutes while the real system delivers 145. The difference may come from inverter efficiency, standby consumption, battery tolerance, cutoff voltage, or temperature. Record actual runtime when the battery is new. If the same load later runs for only 90 minutes, the trend may reveal battery aging or a developing fault.

Maintenance determines whether a UPS remains reliable or becomes a dusty surprise. Keep vents clear, test periodically, update the load list, and replace damaged cables. A battery management system is valuable protection, not permission to ignore temperature, charging limits, damage, or instructions.

Finally, design for graceful failure. Computers should still use automatic saving and scheduled backups. Network storage should have a shutdown method. The UPS should be easy to isolate with a clearly marked disconnect. A good system does more than keep equipment running; it behaves predictably when the battery is low, a component fails, or the outage lasts longer than planned.

Conclusion

Building your own uninterruptible power supply is primarily an exercise in careful system integration. Measure the load, define the runtime, choose the correct battery chemistry, match every voltage and current rating, protect the battery circuit, and test under controlled conditions. The safest DIY UPS uses listed, enclosed modules and keeps homemade work on the low-voltage side.

Start with a modest load such as networking equipment, document everything, and leave permanent AC wiring to qualified professionals. Done thoughtfully, a modular DIY UPS can keep internet service available, prevent corrupted files, and turn the next power failure from a crisis into a minor interruptionplus one smug glance at the little box quietly doing its job.
